Long Description

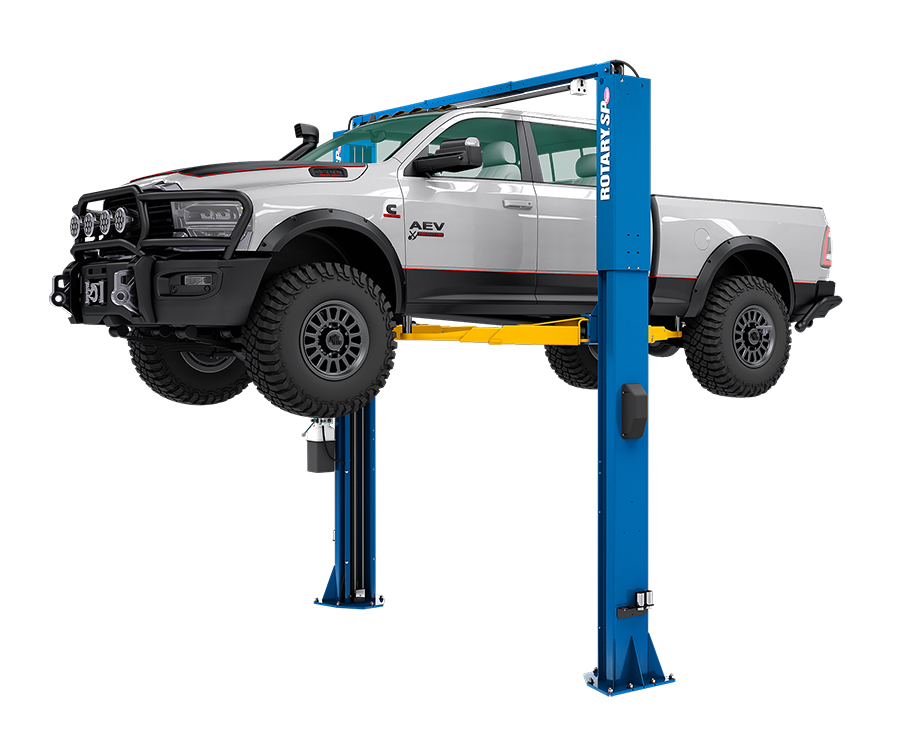

The industry’s leading 12k capacity lift now features a broader base and Rotary’s revolutionary AV Arms™, offering shops greater reach, retraction, and vehicle access. Simply lift anything within rated capacity and vehicle clearance, including EV batteries, truck frames, and unibody cars and SUVs.
- Wider drive-thru and larger footprint for shops working on taller, heavier vehicles
- Standard with adjustable TA truck and RA round poly adapters for use on framed and unibody vehicles
- Includes (4 each) 3-1/2" and 5" adapter extensions plus storage rack
Capacity
12,000 lbs.
Rise
75 3/4” – 78 1/8”
Overall Height
Standard 13′ 8″ | Low 11' 8"
Base Required Ceiling Height
102 3/8"
Drive-Thru
102 3/8" to 114 3/8"
Inside Columns
114 7/8" to 126 7/8"
Arm Reach Min/Max
27 1/2" / 59"
Min. Adapter Height
3 7/8"
Min. Bay Size
12’x26′
Motor / Voltage 1Ø
2 HP / 208-230V
Time of Full Rise
60 secs
