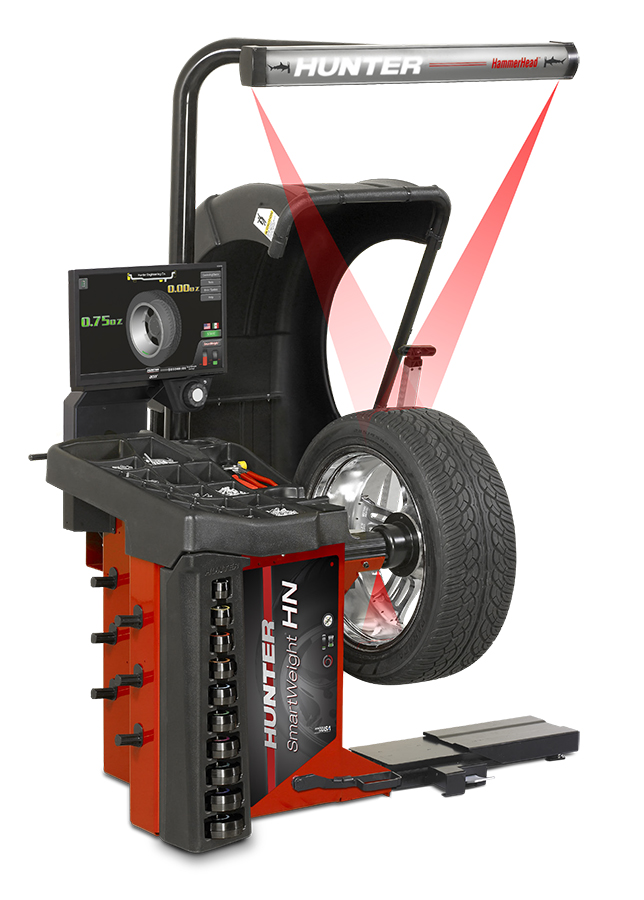

Long Description
- Up to 40", 175lb Assembly, 30" Rim
- Single-knob screen navigation simplifies experience
- Built-in HD video tutorials cover mounting & balancing
- Centering check verifies results
- SmartWeight® better balance & saves excess weight
- Hammerhead® TDC Weight Placement Laser
- Power Wheel Lift: Accurate centering without back strain
- Superior alloy balancer shaft with 3 Year Warranty
- Factory installation and training
- Made in USA
- Cones/Collets and flange plates sold separately
Power Requirements
208-240V, 3 amp, 50/60 Hz, 1 ph NEMA L6-20 plug included
Air supply Requirements
100-175 psi (7-12 bar)
Rim Width
1.5 in to 20.5 in (38 mm to 521 mm)
Rim Diameter
10 in to 30 in (254 mm to 762 mm)
ALU
14 – 40 in. (356 - 1016 mm)
Max. Tire Diameter
40 in (1016 mm)
Max. Tire Width
20 in (508 mm)
Max. Tire Weight
175 lbs (79 kg)
Imbalance Resolution
± 0.01 oz (0.28 g)
Placement Accuracy
512 positions, ± 0.35°
Balancing Speed
300 rpm
Motor
Programmable drive system and DC motor
